Phalanx CIWS garners a lot of criticism from naval commentators for reasons that I generally find to be invalid. Probably the number one criticism of the Phalanx CIWS is the notion that it will merely break up an attacking missile and the resulting debris will, guaranteed, continue on to hit the ship, apparently causing as much damage as the intact missile would (or maybe more?!), in the minds of critics. In fact, among naval commentators, this concept of debris striking the ship has taken on mythic proportions. It’s time to examine this concept and see if it’s true or not.
CIWS Purpose
Let’s start by recalling what the purpose of a close in weapon system is. It is, by definition, the last, ultimate, final chance to prevent an intact, live missile from hitting, penetrating, and exploding inside the ship. Thus, the job of the close in weapon system is to ‘inactivate’ the attacking missile so that it cannot explode in the ship. Ideally, that will be as a result of the physical destruction of the attacking missile. Less ideal, but perfectly acceptable given the alternative, is destruction of the warhead. If some scattered, slower, debris impacts the ship that's far preferable to an intact, exploding missile hitting the ship.
Debris
As far as missile debris hitting the ship, I know of no real world or exercise example of such an occurrence. The theoretical possibility exists but I've seen nothing to suggest it's a significant danger. In fact, there are a few documented exercise examples of CIWS re-engaging debris.
Even a theoretical consideration of the debris strike scenario suggests that it is unlikely. With the main body of the attacking missile hit and destroyed to the point of generating sizable debris, the physics of the scenario suggests that the debris is far more likely to have been blasted onto an altered path, upward, downward, or sideways, away from the targeted ship. The likelihood of debris coming out of an explosion and continuing on the exact same previous path is remote. The force of the explosion almost guarantees that can’t happen since the explosion would occur in front of, or at the front of, the missile and the explosion would impel the rest of the missile debris backwards, sideways, up, or down. The explosion, itself, therefore, acts as a shield or deflector to alter the path of any generated debris. Consider the following conceptual drawing which illustrates how the explosion from a CIWS intercept of an attacking missile (the arrow) scatters the debris up, down, left, and right but not on the missile's original path. Instead, the debris pieces are deflected off the path to the defending ship.
 |

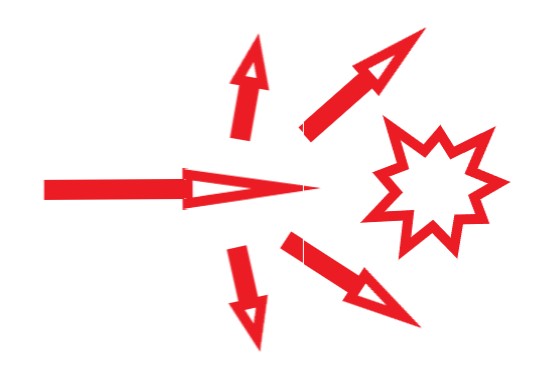

Conceptual CIWS Intercept Attacking Missile is the Arrow Ship is to the Right |
Further, any debris, by definition, will be misshapen, unpowered, and no longer aerodynamic. That means that whatever path it's on it will very quickly lose speed and gravity will further alter its path downward, away from the ship.
In the absolute worst case of a piece somehow continuing on a path that intersects the ship, the piece will be substantially smaller (less mass) than the original attacking missile and, being unpowered, will be very much slower than the original attacking missile and will be decelerating very quickly due to friction and the drag from its non-aerodynamic shape.
Kinetic Energy
One of the arguments that debris myth-holders maintain is that the kinetic energy of the debris pieces will be sufficient to vaporize or severely damage/sink the ship even without a warhead. Of course, as naval analysts and well educated products of our public school system, we know that kinetic energy is the product of two factors: mass and speed:
kinetic energy = ½ * mass * velocity squared
k.e. = ½ * m * v2
Since debris, by definition, is smaller pieces of the original missile, the mass of any given piece will be substantially reduced compared to the original, intact missile, thereby reducing the kinetic energy of the debris. As we noted, the speed of the debris will be hugely reduced and slowing the entire time until impact on the ship. Thus, the velocity term (being a squared effect!) will be hugely reduced. The result is that the kinetic energy of a debris piece will be nearly insignificant as far as inflicting significant damage. Thus, the fears of the ship being vaporized by the kinetic energy of debris pieces are unfounded. Let’s check that by running through a couple of examples.
Chinese C-802/YJ-83 Missile
Let’s consider a common anti-ship missile like the Chinese C-802/YJ-83 series. From Wikipedia,
mass = 715 kg
velocity = Mach 0.9 = 684 mph = 306 m/s
so,
k.e. = 0.5 * m * v2
k.e. = 0.5 * 715 kg * (306 m/s)*(306 m/s)
k.e. = 33,474,870 (kg*m2)/s2 = 33,474,870 J
By comparison, a kg of TNT releases 4,184,000 J. Thus, the k.e. of the original, intact missile is equivalent to around 8 kg of TNT. To put that into context, a U.S. Navy lightweight Mk54 torpedo has a warhead weight of 44 kg (we'll assume it's TNT even though it isn't). That means the missile would have kinetic energy equal to 18% of the explosive energy of a Mk54 lightweight torpedo - not enough to even be noticed, by comparison, and certainly not a one-shot kill/vaporization due to kinetic energy alone.
Of course, that calculation was for an intact missile - with a full fuel load, by the way; the missile would actually have used up much of its fuel and the mass would be lower resulting in even less kinetic energy. Now, let’s repeat the calculation for a debris fragment.
C-802 Debris
For sake of discussion, let’s assume a piece of debris 1/10th of the mass of the original missile and a velocity at impact of ½ the original speed. That gives us,
mass = 0.1 * 715 kg = 71 kg
velocity = 0.5 * Mach 0.9 = Mach 0.45 = 342 mph = 153 m/s
so,
k.e. = 0.5 * 71 kg * (153 m/s)*(153 m/s)
k.e. = 831,019 (kg*m2)/s2 = 831,019 J
By comparison, a kg of TNT releases 4,184,000 J. Thus, the k.e. of the debris piece is equivalent to around 0.2 kg (200 grams) of TNT. To put that into context, a U.S. Navy lightweight Mk54 torpedo has a warhead weight of 44 kg (we'll assume it's TNT even though it isn't). That means the missile would have kinetic energy equal to 0.4% of the explosive energy of a Mk54 lightweight torpedo - not enough to even be noticed.
BrahMos Missile Debris
Now, what about a large, supersonic missile like the BrahMos (3000 kg, Mach 3)? Let’s check. Without all the wordiness, and repeating the above calculations for a piece of debris 1/10th of the original missile and a velocity at impact of ½ the original speed. That gives us,
mass = 0.1 * 3000 kg = 300 kg
velocity = 0.5 * Mach 3 = Mach 1.5 = 1140 mph = 510 m/s
so,
k.e. = 0.5 * 300 kg * (510 m/s)*(510 m/s)
k.e. = 39,015,000 (kg*m2)/s2 = 39,015,000 J
By comparison, a kg of TNT releases 4,184,000 J. Thus, the k.e. of the debris piece is equivalent to around 9 kg of TNT. To put that into context, a U.S. Navy lightweight Mk54 torpedo has a warhead weight of 44 kg (we'll assume it's TNT even though it isn't). That means the missile would have kinetic energy equal to 21% of the explosive energy of a Mk54 lightweight torpedo - not insignificant but nowhere near enough to be a threat to the target ship.
Mini-Summary
These calculations tell us that debris is simply not a threat to the defending ship, at least not as regards kinetic energy of the debris piece. Thus, the hysteria over debris from a CIWS engagement is just that: unfounded hysteria. Fortunately, our public school education has delivered us from the land of hysteria to the realm of science and informed discussion.
Larger Caliber
On a related note, one of the constant calls among naval commentators is for larger caliber CIWS weapons so as to enhance lethality. While the use of larger caliber rounds would increase lethality, it also decreases ammo inventory and firing rate. Anyone who has watched a CIWS live fire video cannot help but be struck by the startling inaccuracy (spread) of the rounds. The scatter is significant. What compensates for the scatter is the high rate of fire. Therefore, given how little it takes to destroy a warhead and alter the path of the main missile body, the gain in lethality does not justify the loss of ammo inventory and firing rate.
Below are screen captures taken from videos of a CIWS shooting at a small boat. Note the spread of the splashes. There was no information about the range or conditions of the exercise but the impression is that the range was very close and still the scatter was quite large.
 |
| Note the Scatter |
 |
| Again, Note the Scatter |
Still captures from video: https://www.youtube.com/watch?v=Zsf38NYzo5Q
It’s not that CIWS is any less accurate than any other weapon – it’s not! It’s just that hitting a moving target (even a relatively large target like a boat as opposed to the frontal aspect of a missile) from a moving platform is very difficult. There are literally dozens/hundreds of factors that affect accuracy and most of those factors are not measurable or controllable. Worse, those factors are dynamically interrelated meaning that the relationships between them changes as their magnitude changes. We do the best we can to write software to predict the aim point but our best software efforts are still very poor, contrary to so many people’s belief that a simple software calculation guarantees one shot, one kill type of accuracy.
If we can’t hit a giant (relative to a missile’s frontal aspect) boat, how can we consider going to larger caliber rounds with less inventory and slower rate of fire? This is also why 5” guns are simply not effective anti-air weapons despite any overblown manufacturer’s claims.
Summary
To sum up, the job of a close in weapon system is not to vaporize an attacking missile but to render it non-explosive and, to the extent possible, as physically degraded as possible. If the CIWS can vaporize the attacking missile, all the better but that is not the minimum requirement.
The myth of debris continuing on, striking the ship, and doing significant damage is a complete fallacy. Debris myth-holders also lose sight of the fact that, even if the worst were to happen, it is still far preferable to be hit by small, unpowered, slow, non-explosive, pieces of debris than an intact, functioning, explosive missile. This is symptomatic of today’s tendency to criticize as worthless any weapon that cannot do a guaranteed, 100% perfect job. This is why critics decry armor just because it can’t totally stop every weapon ever made, while ignoring the overwhelming benefits armor bestows by containing and mitigating the extent of damage. This kind of shortsightedness is crippling our ability to field highly useful and beneficial systems that are less than perfect. As we say - but actually do the opposite - perfect is the enemy of good enough. CIWS is plenty good enough.
So if the critics don't like CIWS or armor, what do they think should be done?
